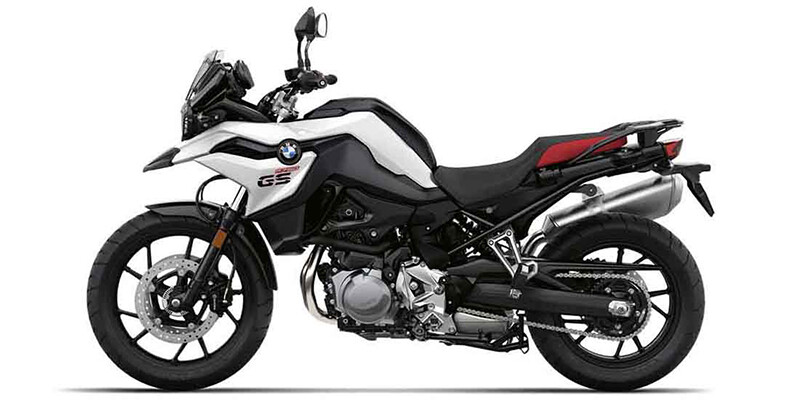

2019 F 750 GS

2019 F 750 GS

THE BEGINNING OF SOMETHING NEW.

Description

THE BEGINNING OF SOMETHING NEW.

The BMW F 750 GS is your ticket to adventure. With this balanced all-rounder, you can master all paths and expand your horizons. The F 750 GS gives you more power, more comfort, more spirit of GS. Feel the strong character of the engine and enjoy the ease of handling of the F 750 GS. While you're off discovering the world, you'll have the bike safely under control with the standard Automatic Stability Control (ASC) and ABS. With the optional addition of Connectivity, the 6.5 inch TFT display boasts many features including navigation and smartphone connectivity.

Real GS roots.

From the slim rear to the striking front tank right up to the typical GS 'beak', the design elements of the F 750 GS personify the GS genes. The flyline is unmistakable and original. With the view on the front, the new LED headlamps and original. From the front view, the new LED headlamps are particularly striking.

THE NEW TWIN CYLINDER ENGINE

When you start your F 750 GS, the journey begins. The lively in-line twin-cylinder will ignite excitement by sending abundant power to the rear wheel, while keeping fuel consumption low thanks to its new engine design.

EVERY START IS EASY.

The agile handling, high comfort level and optional low suspension make your entry into the GS world easier than ever. To ensure that you are seated perfectly, the F 750 GS can be adapted to various seat heights from 30.3” to 32.7”. The relaxed, but nevertheless active seat position and the variable ergonomics support your safety and forms a unit between you and your motorcycle for comfortable touring.

Features may include:

  • New engine concept.

The responsive in-line twin-cylinder with 77 hp sends ample power to the rear wheel.

  • Chassis and Suspension.

Everything is new – the tubular steel space frame, suspension components, and of course the optional Dynamic ESA.

  • Coupling force.

The slipper clutch improves control and riding characteristics.

  • On-Board Computer.

The On-Board computer is standard equipment and displays the most important data at a glance. Standard ASC and Ride Modes.

Automatic Stability Control (ASC) regulates the power transmission to the rear wheel, while the standard Road and Rain Ride Modes regulate the throttle response.

  • Optional Connectivity with TFT-display & Multi-Controller.

Connectivity: You can connect your smartphone to the F 750 GS via Bluetooth and activate a wide range of functions using the multi-controller on the handlebars. The 6.5 inch TFT display shows you a wide variety of information about your motorcycle.

  • Keyless Ride.

Thanks to Keyless Ride, you no longer have to spend time looking for your keys before you set off. All you need to do is carry your key in your pocket in order to unlock and start up your motorcycle.

Specifications

  • ENGINE
    add remove
    • Engine
      Standard
    • Engine Type
      Parallel Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Horsepower (bhp)
      77
    • Horsepower (kW)
      57
    • Horsepower RPM
      7500
    • Torque (Ft Lbs)
      61
    • Torque (Nm)
      83
    • Torque RPM
      6000
    • Cooling
      Liquid
    • Valves
      8
    • Valves Per Cylinder
      4
    • Valve Configuration
      DOHC
    • Bore (mm)
      84
    • Bore (in)
      3.31
    • Stroke (mm)
      77
    • Stroke (in)
      3.03
    • Displacement (cc)
      853
    • Displacement (ci)
      52
    • Turbocharged
      No
    • Supercharged
      No
    • Starter
      Electric
    • Fuel Type
      Gas
    • Fuel Requirements
      Premium
    • Carburetion
      Standard
    • Fuel Injector
      Yes
    • Carburetor
      No
    • Carburetion Type
      Fuel Injected
    • Parental Controls
      Not Available
    • Speed Governor
      No
    • US Miles Per Gallon (Hwy)
      57
    • Other Engine
      Optional
    • Type
      Water-cooled 4-stroke in-line two-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication
    • Bore / stroke
      84 mm x 77 mm
    • Capacity
      853 cc
    • Rated output
      57 kW (77 hp) at 7,500 rpm OE output reduction to 35 kW (48 hp) at 6,500 rpm
    • Max. torque
      83 Nm at 6,000 rpm OE output reduction: 63 Nm at 4,500 rpm
    • Compression ratio
      12.7:1
    • Mixture control
      Electronic injection
    • Emission control
      Closed-loop 3-way catalytic converter, emission standard EU-4
  • PERFORMANCE / FUEL CONSUMPTION
    add remove
    • Maximum speed
      190 km/h
    • Fuel consumption per 100 km based on WMTC
      4,1 l
    • CO2 emission based on WMTC
      98 g/km
    • Fuel type
      Unleaded regular, minimum octane number 91 (RON)
  • POWER TRANSMISSION
    add remove
    • Clutch
      Multiple-disc wet clutch (anti hopping), mechanically operated
    • Gearbox
      Constant mesh 6-speed gearbox integrated in crankcase
    • Drive
      Endless O-ring chain with shock damping in rear wheel hub
  • CHASSIS / SUSPENSION / BRAKES
    add remove
    • Frame
      Bridge-type frame, steel shell construction
    • Suspension travel, front / rear
      151 mm / 177 mm (OE: suspension lowering kit 131 mm / 157 mm)
    • Front wheel location / suspension
      Telescopic fork, Ø 41 mm
    • Rear wheel location / suspension
      Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable
    • Wheelbase
      1,559 mm
    • Castor
      104.5
    • Steering head angle
      63°
    • Wheels
      Cast aluminium wheels
    • Rim, front
      2.50 x 19
    • Rim, rear
      4.25 x 17
    • Tyre, front
      110/80 R19
    • Tyre, rear
      150/70 R17
    • Brake, front
      Dual disc brake, floating brake discs, Ø 305 mm, double-piston floating caliper
    • Brake, rear
      Single disc brake, Ø 265 mm, single-piston floating caliper
    • ABS
      BMW Motorrad ABS (disengageable)
  • DIMENSIONS / WEIGHTS
    add remove
    • Inner leg curve
      1,830 mm (OE suspension lowering kit: 1,750 mm, OE low seat: 1,790 mm, OE comfort seat: 1,870 mm)
    • Usable tank volume
      4 gal
    • Reserve
      approx. 3,5 l
    • Unladen weight, road ready, fully fuelled
      224 kg
    • Max. permitted weight
      970 lbs
    • Payload (with standard equipment)
      476 lbs
    • Length
      2,255 mm
    • Seat height
      815 mm (OE suspension lowering kit: 770 mm, OE low seat: 790 mm, OE comfort seat: 830 mm)
    • Height (excluding mirrors)
      1,225 mm
    • Width (including mirrors)
      922 mm
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Number Of Speeds
      6
    • Overdrive
      Yes
    • Primary Drive (Rear Wheel)
      Chain
    • Gear Ratio (1)
      2.46
    • Gear Ratio (2)
      1.75
    • Gear Ratio (3)
      1.38
    • Gear Ratio (4)
      1.17
    • Gear Ratio (5)
      1.04
    • Gear Ratio (6)
      0.96
    • Reverse
      No
    • Final Drive Ratio
      2.47
    • Heel Toe Shifter
      Not Available
    • Adjustable Throttle
      Not Available
    • Primary Drive (Engine / Transmission)
      Gear
    • Other Transmission
      Optional
  • TECHNICAL SPECIFICATIONS
    add remove
    • Dimensions
      Standard
    • Length (in)
      88.8
    • Length (mm)
      2255
    • Width (in)
      36.3
    • Width (mm)
      922
    • Wheelbase (in)
      61.4
    • Wheelbase (mm)
      1559
    • Weight
      Standard
    • Wet Weight (lbs)
      493
    • Wet Weight (kg)
      334
    • GVWR (lbs)
      970
    • GVWR (kgs)
      440
    • Capacities
      Standard
    • Fuel Capacity (gal)
      4
    • Fuel Capacity (l)
      15
    • Fuel Capacity Reserve (gal)
      0.9
    • Fuel Capacity Reserve (l)
      3.5
    • Performance
      Standard
    • Payload Capacity (lbs)
      476
    • Payload Capacity (kgs)
      440
    • Height (in)
      48.2
    • Height (mm)
      1225
  • EXTERIOR
    add remove
    • Construction
      Standard
    • Frame
      Steel
    • Body Material
      Plastic
    • Floor Boards
      Not Available
    • Foot Pegs
      Standard
    • Foot Peg Location
      Driver and Passenger
    • Hand Grips
      Standard
    • Handlebars
      Standard
    • Handlebar Pads
      Not Available
    • Exterior Guards
      Standard
    • Belt Guard
      No
    • Brush Guard
      No
    • Chain Guard
      Yes
    • Fork Guards
      No
    • Exterior Covers
      Standard
    • Front Fender
      Standard
    • Front Fender Trim
      Not Available
    • Front Fender Rail
      Not Available
    • Rear Fender
      Standard
    • Rear Fender Trim
      Not Available
    • Rear Fender Rail
      Not Available
    • Tank Divider
      Not Available
    • Stand
      Standard
    • Stand Type
      Kick
    • Upper Fairing
      Standard
    • Lower Fairing
      Not Available
    • Spoiler
      Not Available
    • Wind Deflector
      Not Available
    • License Plate
      Standard
    • Other Exterior
      Not Available
    • Top Crown
      Standard
    • Chassis Protectors
      No
    • Saddle Bag Guard
      No
    • Radiator Cover
      No
    • Drive Shaft Guard
      No
    • Heel Guards
      No
    • Fuel Tank Cover
      No
    • Exhaust Guard
      Yes
    • Tank Guard
      No
    • Side Cover
      No
    • Top Crown Material
      Aluminum
  • SUSPENSION
    add remove
    • Front Suspension
      Standard
    • Front Suspension Type
      Telescopic Fork
    • Front Travel (in)
      5.9
    • Front Travel (mm)
      151
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension
      Standard
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      6.9
    • Rear Travel (mm)
      177
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      Yes
    • Number Rear Shock Absorbers
      1
    • Air Adjustable
      No
    • Other Suspension
      Not Available
    • Rear Suspension Material
      Aluminum
    • Front Suspension Size (in)
      1.6
    • Front Suspension Size (mm)
      41
  • WHEELS & TIRES
    add remove
    • Wheels
      Standard
    • Wheels Composition
      Aluminum
    • Tube / Tubeless
      Tubeless
    • Front Wheel Width (in)
      2.5
    • Rear Wheel Width (in)
      4.25
    • Tires
      Standard
    • Front Tire Width
      110
    • Front Tire Aspect Ratio
      80
    • Front Wheel Diameter
      19
    • Rear Tire Width
      150
    • Rear Tire Aspect Ratio
      70
    • Rear Wheel Diameter
      17
    • Front Tire (Full Spec)
      110/80 R19
    • Rear Tire (Full Spec)
      150/70 R17
    • Spare Tire
      Not Available
    • Other Wheels & Tires
      Optional
    • Chromed
      No
  • BRAKES
    add remove
    • Brakes
      Standard
    • Front Brake Type
      Dual Hydraulic Disc
    • Front Brake Diameter (in)
      12
    • Front Brake Diameter (mm)
      305
    • Rear Brake Type
      Hydraulic Disc
    • Rear Brake Diameter (in)
      10.4
    • Rear Brake Diameter (mm)
      265
    • Anti-Lock Brakes
      Standard
    • Linked Brake System Front to Rear
      Standard
    • Regenerative Braking
      Not Available
    • Regenerative Deceleration
      Not Available
    • Other Brakes
      Not Available
  • AUDIO & COMMUNICATION
    add remove
    • Radio
      Not Available
    • Speakers
      Not Available
    • Cassette Player
      Not Available
    • CD Player
      Not Available
    • CB Radio
      Not Available
    • Intercom
      Not Available
    • Headset
      Not Available
    • Other Audio & Communication
      Optional
  • Color options
    add remove
    • Light White
    • Stereo Metallic Matt
    • Austin Yellow Metallic
    • Stereo Metallic Matt Colour
    • Yellow Austin Metallic
