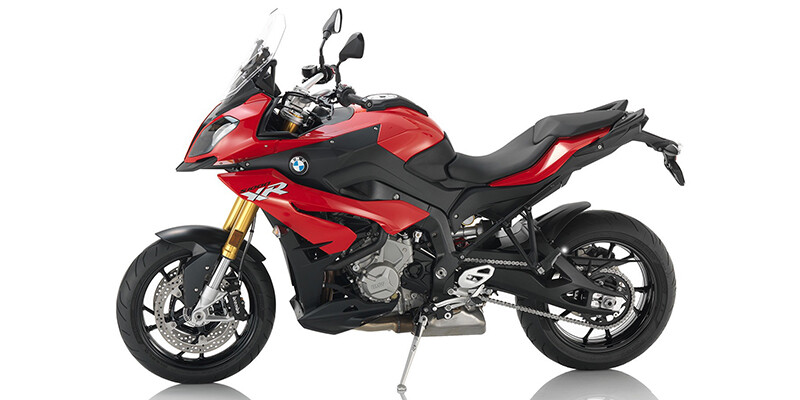

2019 S 1000 XR

2019 S 1000 XR

DISCOVER THE WORLD. FASTER THAN EVER.

Description

DISCOVER THE WORLD. FASTER THAN EVER.

The motorcycle with the dynamic performance of a racer, the upright seat position of an adventure machine and the endurance of a tourer. The BMW S 1000 XR combines the best aspects of all of these worlds to create BMW Motorrad's first adventure sports bike: perfect for anyone who wants performance and comfort in one machine.

The perfect fusion.

The S 1000 XR is exceptional – and that's exactly how it looks. With its synthesis of sports, touring and adventure, it combines the visual characteristics and qualities of each of these categories, making it one impressive-looking bike. The sporty shape and typical BMW S 1000 RR split-face emphasize its supersport influence, while its characteristic flyline, "beak" and relatively long spring travel reflect the look and ergonomics of the GS series. Wherever the S 1000 XR rolls up, it's sure to turn heads.

Accelerate into your asphalt adventure.

The powerful four-cylinder in-line engine delivers an impressive 165 hp at 11,000 rpm and develops a maximum torque of 84 lb-ft of torque at 9,250 rpm. The liquid-cooled engine provides an abundance of torque, particularly for the desired punchy acceleration at low and mid-range engine speeds. Together with the Gear Shift Assist Pro, relaxed cruising is accomplished with the same ease as when confidently heading out for a sporty ride on the country round or embarking on an adventure with a passenger.

Power meets innovation.

The S 1000 XR comes with two Ride Modes standard - Rain and Road – allowing riders to adapt optimally to riding conditions. The standard ASC (Automatic Stability Control) ensures a high level of riding safety based on optimum traction. In short, the S 1000 XR can do everything – from tearing along winding country roads to tours for two with luggage.

Features may include:

  • Strong-charactered front.

The RR split face highlights the fact that this is firmly rooted in the sporting segment.

  • Upside Down fork.

Reminiscent of the BMW Motorrad GS family and ensures high agility.

  • Multifunctional instrument cluster.

Everything at a glance: the displays are aligned entirely for precise and swift acknowledgement of information - including shift light.

  • Attention to detail.

The rubber coating atop the tank protects from unsightly scratches.

  • Windscreen can be adjusted in two steps.

Provides assured comfort even at high speeds.

  • Ergonomically designed seat.

Ensures riding pleasure even on long routes.

  • Cast aluminum wheels with an angled valve stem.

Dynamic 10-spoke wheels made of die-cast aluminum.

  • Strikingly designed rear exhaust.

Enables freedom when it comes to leaning in turns, and allows the attachment of two side cases.

Specifications

  • ENGINE
    add remove
    • Engine
      Standard
    • Engine Type
      Horizontal In-line
    • Cylinders
      4
    • Engine Stroke
      4-Stroke
    • Horsepower (bhp)
      165
    • Horsepower (kW)
      121
    • Horsepower RPM
      11000
    • Torque (Ft Lbs)
      84
    • Torque (Nm)
      114
    • Torque RPM
      9250
    • Cooling
      Liquid
    • Valves
      16
    • Valves Per Cylinder
      4
    • Valve Configuration
      DOHC
    • Bore (mm)
      80
    • Bore (in)
      3.15
    • Stroke (mm)
      49.7
    • Stroke (in)
      1.96
    • Displacement (cc)
      999
    • Displacement (ci)
      60.9
    • Turbocharged
      No
    • Supercharged
      No
    • Starter
      Electric
    • Fuel Type
      Gas
    • Fuel Requirements
      Premium
    • Carburetion
      Standard
    • Fuel Injector
      Yes
    • Carburetor
      No
    • Carburetion Type
      Fuel Injected
    • Parental Controls
      Not Available
    • US Miles Per Gallon (Hwy)
      35
    • Fuel Injector Size (mm)
      48
    • Other Engine
      Optional
    • CAN Liters Per Kilometer (Hwy)
      6.7
    • Type
      Water/oil-cooled 4-cylinder 4-stroke in-line engine, four valves per cylinder, two overhead camshafts
    • Bore / stroke
      80 mm x 49.7 mm
    • Capacity
      999 cc
    • Max. output
      121 kW (165 PS) at 11,000 rpm
    • Max. torque
      114 Nm at 9,250 rpm
    • Compression ratio
      12.0:1
    • Emission control
      Regulated three-way catalytic converter, balance pipe, compliant with EU4 emission standard
    • Fuel preparation
      Electric fuel injection
  • PERFORMANCE / FUEL CONSUMPTION
    add remove
    • Maximum speed
      Over 200 km/h
    • Fuel consumption per 100 km based on WMTC
      6.7 l
    • CO2 emission based on WMTC
      154 g/km
    • Fuel type
      Premium unleaded, 95–98 octane (RON) (knock control; nominal load capacity with 98-octane fuel)
  • POWER TRANSMISSION
    add remove
    • Clutch
      Multiplate clutch in oil bath, slipper clutch, mechanically controlled
    • Gearbox
      Six-speed synchromesh gearbox with spur gears
    • Drive
      Chain 17/45
  • CHASSIS / SUSPENSION / BRAKES
    add remove
    • Frame
      Aluminium composite bridge frame, partially self-supporting engine
    • Front suspension / spring elements
      Upside-down telescopic fork, diameter 46 mm, rebound/compression damping adjustable
    • Rear suspension / spring elements
      Aluminium double-sided swing-arm, central spring strut, adjustable rebound-stage damping
    • Spring travel, front/rear
      150 mm / 140 mm
    • Wheelbase
      1,548 mm
    • Castor
      117
    • Steering head angle
      64.5°
    • Wheels
      Cast aluminium
    • Rim, front
      3.50 x 17
    • Rim, rear
      6.00 x 17
    • Tyre, front
      120/70 ZR 17
    • Tyre, rear
      190/55 ZR 17
    • Brake, front
      Twin disc brakes, diameter 320 mm, floating discs, radial four-piston fixed calipers
    • Brake, rear
      Single disc brake, diameter 265 mm, twin-piston floating caliper
    • ABS
      BMW Motorrad Race ABS, partially integral, switchable
    • ASC
      Automatic Stability Control
  • DIMENSIONS / WEIGHTS
    add remove
    • Inner leg curve
      1.894 mm (lower suspension* 1.790mm) OE*
    • Rider step length, unladen
      1,894 mm
    • Reserve
      approx. 4 l
    • Unladen weight, road ready, fully fuelled
      228 kg
    • Max. permitted weight
      979 lbs
    • Max. load (with standard equipment)
      216 kg
    • Length
      2,183 mm
    • Seat height, unladen
      840 mm
    • Height (excluding mirrors)
      1,408 mm
    • Width (including mirrors)
      940 mm
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Number Of Speeds
      6
    • Overdrive
      No
    • Primary Drive (Rear Wheel)
      Chain
    • Gear Ratio (1)
      2.65
    • Gear Ratio (2)
      2.09
    • Gear Ratio (3)
      1.73
    • Gear Ratio (4)
      1.5
    • Gear Ratio (5)
      1.36
    • Gear Ratio (6)
      1.26
    • Reverse
      No
    • Final Drive Ratio
      2.65
    • Heel Toe Shifter
      Not Available
    • Adjustable Throttle
      Not Available
    • Other Transmission
      Optional
  • TECHNICAL SPECIFICATIONS
    add remove
    • Dimensions
      Standard
    • Length (in)
      86
    • Length (mm)
      2183
    • Width (in)
      37
    • Width (mm)
      940
    • Wheelbase (in)
      61
    • Wheelbase (mm)
      1548
    • Weight
      Standard
    • Wet Weight (lbs)
      503
    • Wet Weight (kg)
      228
    • GVWR (lbs)
      979
    • GVWR (kgs)
      444
    • Capacities
      Standard
    • Fuel Capacity (gal)
      5.2
    • Fuel Capacity (l)
      20
    • Fuel Capacity Reserve (gal)
      1
    • Fuel Capacity Reserve (l)
      4
    • Performance
      Standard
    • Engine Displacement to Weight (cc)
      1.99
    • Payload Capacity (lbs)
      476
    • Payload Capacity (kgs)
      216
    • Height (in)
      55.5
    • Height (mm)
      1408
  • EXTERIOR
    add remove
    • Construction
      Standard
    • Frame
      Aluminum
    • Body Material
      Plastic
    • Floor Boards
      Not Available
    • Foot Pegs
      Standard
    • Foot Peg Location
      Driver and Passenger
    • Hand Grips
      Standard
    • Handlebars
      Standard
    • Handlebar Pads
      Not Available
    • Exterior Guards
      Standard
    • Belt Guard
      No
    • Brush Guard
      No
    • Chain Guard
      Yes
    • Fork Guards
      Yes
    • Hand Guards
      No
    • Light Guard
      No
    • Exterior Covers
      Standard
    • Front Fender
      Standard
    • Front Fender Trim
      Not Available
    • Front Fender Rail
      Not Available
    • Rear Fender
      Standard
    • Rear Fender Trim
      Not Available
    • Rear Fender Rail
      Not Available
    • Tank Divider
      Not Available
    • Stand
      Standard
    • Stand Type
      Kick
    • Upper Fairing
      Standard
    • Lower Fairing
      Standard
    • Spoiler
      Standard
    • Skid Plate
      Not Available
    • Wind Deflector
      Optional
    • License Plate
      Standard
    • Other Exterior
      Not Available
    • Top Crown
      Standard
    • Engine Case Guard
      No
    • Saddle Bag Guard
      No
    • Drive Shaft Guard
      No
    • Heel Guards
      Yes
    • Exhaust Guard
      Yes
    • Side Cover
      Yes
  • SUSPENSION
    add remove
    • Front Suspension
      Standard
    • Front Suspension Type
      Inverted Fork
    • Front Travel (in)
      5.9
    • Front Travel (mm)
      150
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Central Suspension Strut
      No
    • Steering Damper
      Yes
    • Rear Suspension
      Standard
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      5.5
    • Rear Travel (mm)
      140
    • Rear Adjustable Rebound Damping
      Yes
    • Number Rear Shock Absorbers
      1
    • Air Adjustable
      No
    • Other Suspension
      Not Available
    • Rear Suspension Material
      Aluminum
    • Front Suspension Size (in)
      1.8
    • Front Suspension Size (mm)
      46
  • WHEELS & TIRES
    add remove
    • Wheels
      Standard
    • Wheels Composition
      Aluminum
    • Tube / Tubeless
      Tubeless
    • Front Wheel Width (in)
      3.5
    • Rear Wheel Width (in)
      6
    • Tires
      Standard
    • Front Tire Width
      120
    • Front Tire Aspect Ratio
      70
    • Front Tire Speed Rating
      Z
    • Front Wheel Diameter
      17
    • Rear Tire Width
      190
    • Rear Tire Aspect Ratio
      55
    • Rear Tire Speed Rating
      Z
    • Rear Wheel Diameter
      17
    • Front Tire (Full Spec)
      120/70 ZR17
    • Rear Tire (Full Spec)
      190/55 ZR17
    • Spare Tire
      Not Available
    • Other Wheels & Tires
      Not Available
    • Chromed
      No
  • BRAKES
    add remove
    • Brakes
      Standard
    • Front Brake Type
      Dual Hydraulic Disc
    • Front Brake Diameter (in)
      12.6
    • Front Brake Diameter (mm)
      320
    • Rear Brake Type
      Hydraulic Disc
    • Rear Brake Diameter (in)
      10.4
    • Rear Brake Diameter (mm)
      265
    • Anti-Lock Brakes
      Standard
    • Linked Brake System Front to Rear
      Standard
    • Regenerative Braking
      Not Available
    • Regenerative Deceleration
      Not Available
    • Other Brakes
      Not Available
  • AUDIO & COMMUNICATION
    add remove
    • Radio
      Not Available
    • Speakers
      Not Available
    • Cassette Player
      Not Available
    • CD Player
      Not Available
    • CB Radio
      Not Available
    • Intercom
      Not Available
    • Headset
      Not Available
    • Other Audio & Communication
      Not Available
  • COMMENTS
    add remove
    • Comment
      Standard
    • Previous Model Year Accessories
      Yes
  • Color options
    add remove
    • Racing Red
    • HP Motorsport
    • HP Motorsport Colors Light White / Lupin Blue Metallic / Racing Red
    • Blackstorm Metallic
    • Style Triple Black
