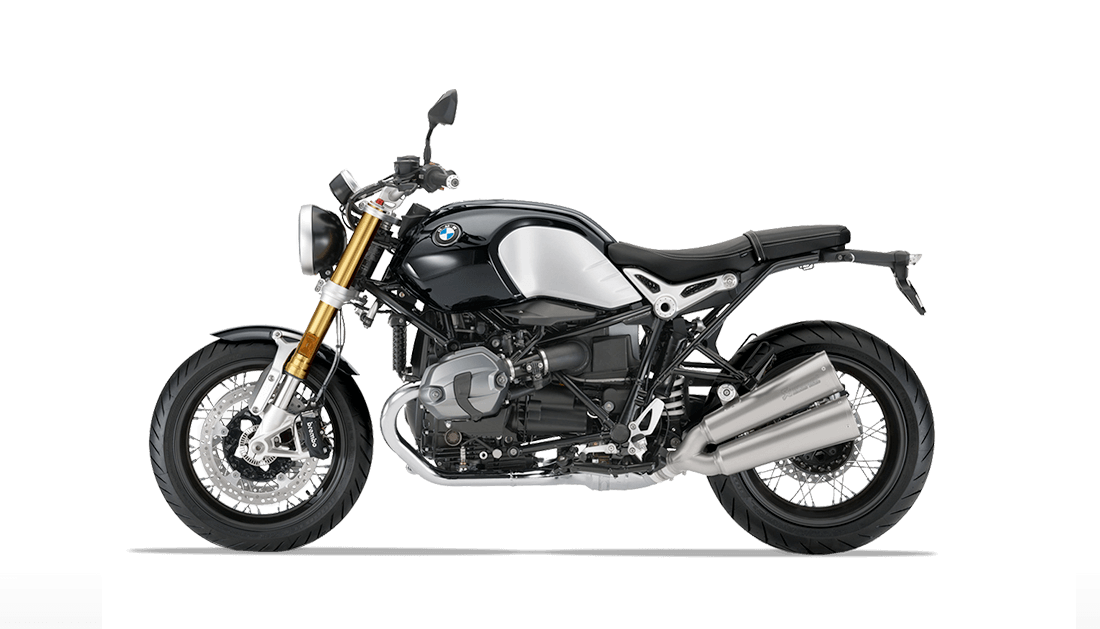

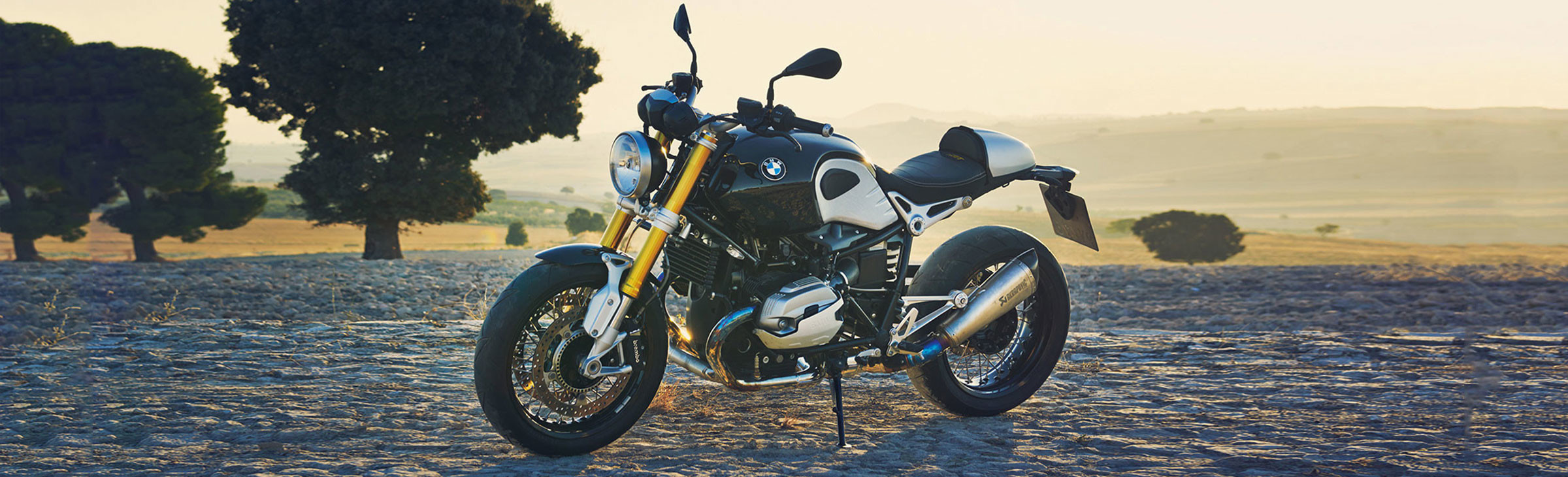

2019 R nineT
2019 R nineT

2019 R nineT

UNMISTAKABLE. ORIGINAL. AIR-COOLED.

Description

UNMISTAKABLE. ORIGINAL. AIR-COOLED.

Motorcycling is a sign of pure freedom: landscape, corners, straights, every mile counts. If this is the path you have chosen, the R nineT is the perfect companion and knows hardly any limits when it comes to your personal fulfillment thanks to its countless customization possibilities. The character of its air-cooled boxer engine, combined with its state-of-the-art technology, irresistibly propels you forward in a way that can be clearly felt with its full torque curve. Right from the start, the R nineT has enthralled, inspired and stimulated motorcycling enthusiasts around the world.

Unmistakably the R nineT.

The R nineT has an uncomplicated style but nevertheless a completely unmistakable presence. It embodies the passion and innovation of over 90 years of motorcycle construction – naturally together with the classic BMW Motorrad proportions: striking boxer engine, compact tank, slim rear. All materials are of consistently high quality; the surfaces are carefully refined. Added to this is an immense attention to detail and real craftsmanship. The fender for instance is screwed to the fork feet using two forged brackets. And the headlamp holder is made out of aluminum.

Born to be customized.

The focus when developing the R nineT was its modular concept right from the outset: for the highest degree of customization possibilities. Countless professional and private modifications prove how much potential the R nineT has. Open interfaces in the electronics facilitate and alleviate the installation of electric components. Added to this is the well thought out separable frame. The end piece of the rear frame can be easily disassembled: for a purist and stylish solo look, or for alternative seating options.

Features may include:

  • Twin-cylinder boxer engine.

Powerful and reliable: the heart of the R nineT. The boxer is more than just an engine – it is a statement, a lifestyle.

  • Steering dampers.

The elegant conical connection of the steering damper is an homage to the engineering skill and a sign of the love of design at BMW Motorrad.

  • Type plate.

Who are you and where do you come from? The type plate of the R nineT reveals a lot more than just "Made in Berlin".

  • Variable rear.

Whether you are alone or traveling as a pair, with the variable rear, you define your R nineT's look in just a few short steps.

  • Seat supports.

Forged from solid aluminum, the seat supports form the focal point between the tank, seat and engine.

  • Pure aluminium.

Unpainted, raw, high-quality. Numerous parts made of brushed aluminum give the R nineT an unmistakable look.

  • ABS.

BMW Motorrad quality, combined with the latest safety technology, assist in a carefree riding experience.

  • Fender bracket.

The solid aluminum struts from one cast nestle against the front-wheel cover.

Specifications

  • ENGINE
    add remove
    • Engine
      Standard
    • Engine Type
      Flat Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Horsepower (bhp)
      110
    • Horsepower (kW)
      81
    • Horsepower RPM
      7750
    • Torque (Ft Lbs)
      86
    • Torque (Nm)
      116
    • Torque RPM
      6000
    • Cooling
      Air / Oil
    • Valves
      8
    • Valves Per Cylinder
      4
    • Valve Configuration
      DOHC
    • Bore (mm)
      101
    • Bore (in)
      3.98
    • Stroke (mm)
      73
    • Stroke (in)
      2.88
    • Displacement (cc)
      1170
    • Displacement (ci)
      71.4
    • Turbocharged
      No
    • Supercharged
      No
    • Starter
      Electric
    • Fuel Type
      Gas
    • Fuel Requirements
      Premium
    • Carburetion
      Standard
    • Fuel Injector
      Yes
    • Carburetor
      No
    • Carburetion Type
      Fuel Injected
    • Parental Controls
      Not Available
    • US Miles Per Gallon (Hwy)
      44
    • Fuel Injector Size (mm)
      50
    • Other Engine
      Not Available
    • Number Of Carburetors
      0
    • Type
      Air/oil-cooled flat twin ('Boxer') 4-stroke engine, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft
    • Bore / stroke
      101 mm x 73 mm
    • Capacity
      1,170 cc
    • Nominal load capacity
      81 kW / 7550 rpm
    • Max. torque
      116 Nm at 6,000 rpm
    • Compression ratio
      12.0:1
    • Mixture control
      Electronic intake pipe injection / digital engine management with overrund cutoff, twin-spark ignition
    • Emission control
      Controlled 3-way catalytic converter, exhaust emission standards EU-4
  • PERFORMANCE / FUEL CONSUMPTION
    add remove
    • Maximum speed
      Over 200 km/h
    • Fuel consumption per 100 km based on WMTC
      4.5 l
    • CO2 emission based on WMTC
      123 g/km
    • Fuel type
      Unleaded petrol, 95-98 octane (RON) (nominal load capacity with 98 octane (RON))
  • POWER TRANSMISSION
    add remove
    • Clutch
      Hydraulically operated single-disc dry clutch
    • Gearbox
      Claw-shifted six-speed transmission with helical-cut splines
    • Drive
      Shaft drive
  • CHASSIS / SUSPENSION / BRAKES
    add remove
    • Frame
      Four-section frame made up of front and three-section rear subframes, load-bearing engine/gearbox, pillion frame can be removed for solo riding
    • Rear suspension / spring elements
      Cast aluminium single-sided swing-arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically and steplessly adjustable via handwheel, adjustable rebound damping
    • Suspension travel, front / rear
      120 mm / 120 mm
    • Front wheel location / suspension
      Upside-down telescopic forks, 46 mm fixed-fork-tube diameter
    • Wheelbase
      1,487 mm
    • Castor
      107.9
    • Steering head angle
      63.2 °
    • Wheels
      Wire wheels
    • Rim, front
      3.50 x 17
    • Rim, rear
      5.50 x 17”
    • Tyre, front
      120/70 ZR 17
    • Tyre, rear
      180/55 ZR 17
    • Brake, front
      Twin disc brakes, floating discs, diameter 320 mm, four-piston radial brake calipers
    • Brake, rear
      Single disc brake, diameter 265 mm, double-piston floating caliper
    • ABS
      BMW Motorrad ABS
  • DIMENSIONS / WEIGHTS
    add remove
    • Rider step length, unladen
      1,785 mm
    • Usable tank volume
      4.8 gal
    • Reserve
      approx. 3 l
    • Unladen weight, road ready, fully fuelled
      222 kg
    • Max. load (with standard equipment)
      208 kg
    • Length
      2,110 mm
    • Seat height, unladen
      805 mm
    • Height (including mirrors)
      1,240 mm
    • Width (including mirrors)
      900 mm
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Number Of Speeds
      6
    • Overdrive
      Yes
    • Primary Drive (Rear Wheel)
      Shaft
    • Gear Ratio (1)
      2.38
    • Gear Ratio (2)
      1.7
    • Gear Ratio (3)
      1.3
    • Gear Ratio (4)
      1.07
    • Gear Ratio (5)
      0.94
    • Gear Ratio (6)
      0.85
    • Reverse
      No
    • Final Drive Ratio
      2.91
    • Heel Toe Shifter
      Not Available
    • Adjustable Throttle
      Not Available
    • Other Transmission
      Not Available
  • TECHNICAL SPECIFICATIONS
    add remove
    • Dimensions
      Standard
    • Length (in)
      83.1
    • Length (mm)
      2110
    • Width (in)
      35.5
    • Width (mm)
      900
    • Wheelbase (in)
      58.5
    • Wheelbase (mm)
      1487
    • Weight
      Standard
    • Wet Weight (lbs)
      489
    • Wet Weight (kg)
      222
    • GVWR (lbs)
      948
    • GVWR (kgs)
      430
    • Capacities
      Standard
    • Fuel Capacity (gal)
      4.8
    • Fuel Capacity (l)
      18
    • Fuel Capacity Reserve (gal)
      0.8
    • Fuel Capacity Reserve (l)
      3
    • Performance
      Standard
    • Payload Capacity (lbs)
      459
    • Payload Capacity (kgs)
      208
    • Height (in)
      48.8
    • Height (mm)
      1240
  • EXTERIOR
    add remove
    • Construction
      Standard
    • Frame
      Steel
    • Body Material
      Plastic
    • Floor Boards
      Not Available
    • Foot Pegs
      Standard
    • Foot Peg Location
      Driver and Passenger
    • Hand Grips
      Standard
    • Handlebars
      Standard
    • Handlebar Pads
      Not Available
    • Exterior Guards
      Standard
    • Belt Guard
      No
    • Brush Guard
      No
    • Chain Guard
      No
    • Fork Guards
      No
    • Hand Guards
      No
    • Light Guard
      No
    • Exterior Covers
      Standard
    • Front Fender
      Standard
    • Front Fender Trim
      Not Available
    • Front Fender Rail
      Not Available
    • Rear Fender
      Standard
    • Rear Fender Trim
      Not Available
    • Rear Fender Rail
      Not Available
    • Tank Divider
      Not Available
    • Stand
      Standard
    • Stand Type
      Kick
    • Upper Fairing
      Not Available
    • Lower Fairing
      Not Available
    • Spoiler
      Not Available
    • Skid Plate
      Not Available
    • Wind Deflector
      Not Available
    • License Plate
      Standard
    • Other Exterior
      Not Available
    • Top Crown
      Standard
    • Radiator Cover
      No
    • Tank Guard
      No
  • SUSPENSION
    add remove
    • Front Suspension
      Standard
    • Front Suspension Type
      Inverted Fork
    • Front Travel (in)
      4.7
    • Front Travel (mm)
      120
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Adjustable Rebound Damping
      Yes
    • Front Central Suspension Strut
      No
    • Steering Damper
      Yes
    • Rear Suspension
      Standard
    • Rear Suspension Brand Name
      Paralever
    • Rear Suspension Type
      Single Sided Swing Arm
    • Rear Travel (in)
      4.7
    • Rear Travel (mm)
      120
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      Yes
    • Number Rear Shock Absorbers
      1
    • Air Adjustable
      No
    • Other Suspension
      Not Available
    • Rear Suspension Material
      Aluminum
    • Front Suspension Size (in)
      1.8
    • Front Suspension Size (mm)
      46
  • WHEELS & TIRES
    add remove
    • Wheels
      Standard
    • Wheels Composition
      Steel
    • Tube / Tubeless
      Tubed
    • Front Wheel Width (in)
      3.5
    • Rear Wheel Width (in)
      5.5
    • Tires
      Standard
    • Front Tire Width
      120
    • Front Tire Aspect Ratio
      70
    • Front Tire Speed Rating
      Z
    • Front Wheel Diameter
      17
    • Rear Tire Width
      180
    • Rear Tire Aspect Ratio
      55
    • Rear Tire Speed Rating
      Z
    • Rear Wheel Diameter
      17
    • Front Tire (Full Spec)
      120/70 ZR17
    • Rear Tire (Full Spec)
      180/55 ZR17
    • Spare Tire
      Not Available
    • Other Wheels & Tires
      Not Available
  • BRAKES
    add remove
    • Brakes
      Standard
    • Front Brake Type
      Dual Hydraulic Disc
    • Front Brake Diameter (in)
      12.6
    • Front Brake Diameter (mm)
      320
    • Rear Brake Type
      Hydraulic Disc
    • Rear Brake Diameter (in)
      10.4
    • Rear Brake Diameter (mm)
      265
    • Anti-Lock Brakes
      Standard
    • Linked Brake System Front to Rear
      Standard
    • Regenerative Braking
      Not Available
    • Regenerative Deceleration
      Not Available
    • Other Brakes
      Not Available
  • AUDIO & COMMUNICATION
    add remove
    • Radio
      Not Available
    • Speakers
      Not Available
    • Cassette Player
      Not Available
    • CD Player
      Not Available
    • CB Radio
      Not Available
    • Intercom
      Not Available
    • Headset
      Not Available
    • Satellite
      No
    • Other Audio & Communication
      Not Available
  • COMMENTS
    add remove
    • Comment
      Standard
    • Previous Model Year Accessories
      Yes
  • Color options
    add remove
    • Black Storm Metallic
    • Black Storm Metallic, Vintage
    • Blackstorm Metallic
    • Opt. 719 Mars Red Metallic Matt / Cosmic Blue Metallic Matt
    • Opt. 719 Pollux Metallic / Aluminium
    • Option 719 Pollux Metallic / Alluminum
    • Opt. 719 Black Storm Metallic / Vintage
    • Option 719 Mars Red Metallic Matte / Cosmiblue Metallic Matt
