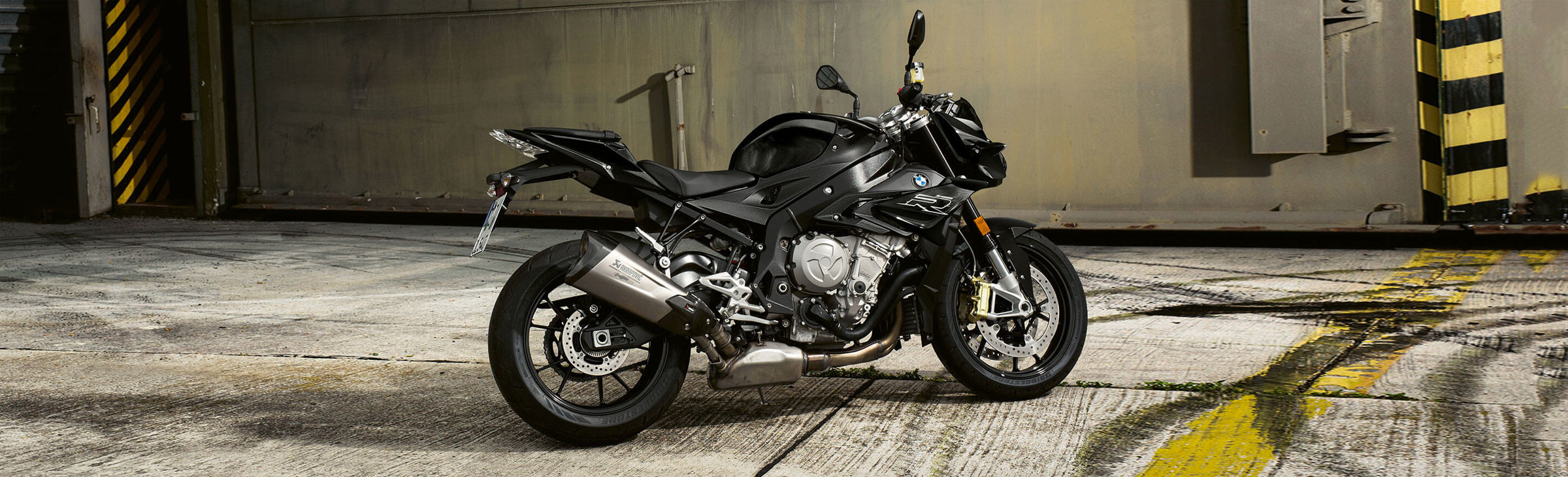

2019 S 1000 R Sport

UNCOMPROMISING DYNAMICS.

Description

Is your heartbeat connected directly to the tachometer? Then the S 1000 R is the Roadster for you – stripped down to the essentials, but maximising pure riding pleasure. Its aggressive engine with its 121 kW (165 hp) will put a smile on your face every time it revs up. And the rich sound of the new standard HP titanium rear silencer leaves no doubt: that's how life in the fast lane sounds.

• DTC

• Race ABS, ASC

• Riding Modes Rain and Road

• Riding Mode Pro - includes ABS Pro, DTC Adjustment and Riding Modes Dynamic and Dynamic Pro

• Engine Spoiler

• Cruise Control

• Gear Shift Assist Pro

• DDC

• Heated Grips

• LED Indicators

• HP Slip on Titanium Silencer

• Design Wheels - Black with Red Pinstripe

Specifications

ENGINE

add remove
- Type

  Water-cooled, in-line four-cylinder four-stroke engine, four valves per cylinder, double overhead camshaft
- Bore / stroke

  80 mm x 49.7 mm
- Capacity

  999 cc
- Max. output

  121 kW (165 PS) at 11,000 rpm
- Max. torque

  114 Nm at 9,250 rpm
- Compression ratio

  12.1 : 1
- Emission control

  Emission standard EU-4, HP titanium rear silencer
- Fuel/engine management

  Electric fuel injection
PERFORMANCE / FUEL CONSUMPTION

add remove
- Maximum speed

  Over 200 km/h
- Fuel consumption per 100 km based on WMTC

  6.7 l
- CO₂ emission based on WMTC

  154 g/km
- Fuel type

  Premium unleaded, 95–98 octane (RON) (knock control; nominal load capacity with 98-octane fuel)
POWER TRANSMISSION

add remove
- Clutch

  Wet multidisc clutch, anti-hopping clutch, mechanically operated
- Gearbox

  Constant-mesh 6-speed gearbox, straight-toothed
- Drive

  Chain 17/45
CHASSIS / SUSPENSION / BRAKES

add remove
- Frame

  Bridge-type aluminium frame with load-bearing engine
- Front suspension / spring elements

  Upside-down telescopic fork, diameter 46 mm, rebound/compression damping adjustable
- Rear suspension / spring elements

  Aluminium double-sided swing-arm, central spring strut, adjustable rebound-stage damping
- Spring travel, front/rear

  120 mm / 120 mm
- Wheelbase

  1,439 mm
- Castor

  98.5
- Steering head angle

  65.2°
- Wheels

  Cast aluminium
- Rim, front

  3.50 x 17
- Rim, rear

  6.00 x 17
- Tyre, front

  120/70 ZR 17
- Tyre, rear

  190/55 ZR 17
- Brake, front

  Twin disc brakes, diameter 320 mm, floating discs, radial four-piston fixed calipers, thickness 5 mm
- Brake, rear

  Single disc brake, diameter 220 mm, single-piston floating caliper, thickness 5 mm
- ABS

  BMW Motorrad Race ABS, partially integral, switchable
DIMENSIONS / WEIGHTS

add remove
- Rider step length, unladen

  1,805 mm
- Usable tank volume

  4.6 gal
- Reserve

  approx. 4 l
- Unladen weight, road ready, fully fuelled

  205 kg
- Max. permitted weight

  897 lbs
- Max. load (with standard equipment)

  202 kg
- Length

  2,057 mm
- Seat height, unladen

  814 mm
- Height (excluding mirrors)

  1,228 mm
- Width (including mirrors)

  845 mm
Color options

add remove
- Black Storm Metallic
- HP Motorsport
- Racing Red / Black Storm Metallic
